Tungsten Carbide Brazing Rod High Quality Tungsten Carbide Brazing Rods
Production Description:
The Composite Alloy Rods are made of tungsten carbide grits and Cu or Ni, using together with a large oxy-acetylene torch, sometimes the carbide powder can be used as the tips. Tungsten carbide crushed grits is the most economic choice in normal application, if you need high durability, a carbide insert would be more suitable.
The hardness is 89-01 HRA. The binder metal is Cu or Ni alloy, with a strength up to 690 MPA, hardness, HB higher than 160. Most of the composite brazing rods are made of crushing sintered tungsten carbide particles and bonded with a bronze nickel matrix with a low melting point (870 °C).
| Product Name | TC Composite Welding Rods |
| Brand | JWE |
| Material | 100% Virgin Tungsten Carbide |
| Grade | YGN70/YGU70 |
| Usage | Hardfacing/Coatings |
| Surface Treatment | Abrasive blasting |
| Millimetres
| Inches
|
| 1,6-3,2 mm
| 1/8"-1/16"
|
| 3,2-4,8 mm
| 3/16"-1/8”
|
| 4,8-6,35 mm
| 1/4"-3/16
|
| 6,35-8,0 mm
| 5/16"-1/4"
|
| 8.0-9,5 mm
| 3/8"-5/16"
|
| 9,5-12,5 mm
| 1/2”-3/8”
|
Product Packaging & Storage:
Company Introduction:

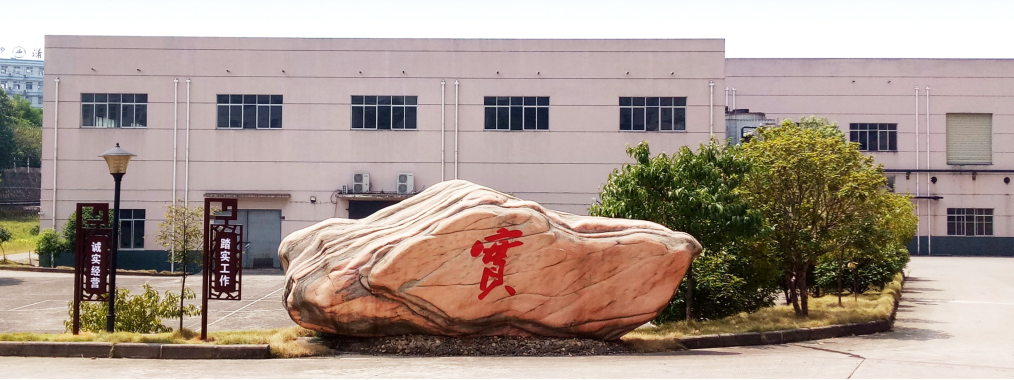

JWE Carbide Co., Ltd. is designated as a high-tech and new material enterprise was founded in March 2005, with registered capital of USD1, 000, 000, located in Lukou Economic Zone of Zhuzhou city, the hometown of Chinese Tungsten Carbide. Our factory covers an area of 20,000 square meters, equipped with advanced technologies and manufacturing equipment, we major in researching, developing and producing medium and high-grade tungsten carbide products.
